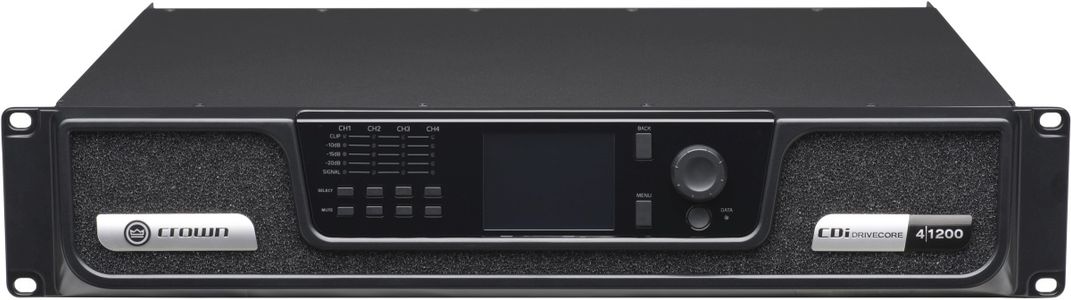

Crown® Audio CDi DriveCore 4|1200 4 Channel Analog Input Amplifier

Crown Audio

Model #:

GCDI4x12-U-US

Model #: GCDI4x12-U-US
532009
Crown Audio
$99,999.00

At a Glance

Product Dimensions 3.5"h x 19"w x 14.71"d

Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

4-channel amp that includes network control/monitoring

High-level DSP

Front-panel interface

Support for driving up to 100Vrms speaker loads without requiring a transformer

Useful Documents
Comparison Chart
Operation Manual
Power Draw and Thermal Sheet
Cutsheet
Specifications

General Specs

Depth (in.)14.71
Height (in.)3.5
Width (in.)19
Channels4
Frequency Response+/-0.25dB(8 Ohms, 20 Hz - 20 kHz)
Color Finish NameBlack
Product Weight (lbs.)20.1
CollectionCDi DriveCore
ColorBlack
Voltage100/240

General

BLU linkNo
Channels4
Sensitivity (for full rated power at 8 ohms)0.7V RMS
Rated Power Output (per channel @ 4 ohms)1200W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms)> 104dB
THD (full rated power, 20 Hz - 20 kHz)0.35%
Damping Factor (20 Hz to 100 Hz)> 1000
Frequency Response (8Ω, 20 Hz - 20 kHz)+/-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz> 80dB
Input Impedance (nominally balanced, nominally unbalanced)20 kΩ balanced, 10 kΩ unbalanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion)19 x 3.5 x 14.71
Weight20.1 lbs (9.12 kg)
Power Supply Connector20A IEC connector, 100 – 240V
